T8 LED Tube Light Parameters
|
Model
NO.
|
T08-006-050C-IN-F01
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
900
|
|
CCT(K)
|
5000-5500K
|
|
CRI(Ra)
|
70
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity
|
50
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-240V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC72-80V
|
|
Total Power(W)
|
10
|
|
Power Factor
|
>0.86
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
3750Vac/60s
|
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
Φ26×600
|
|
Length(mm)
|
600
|
|
Net Weight(g)
|
210
|
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
/
|
|
Environmental Directives
|
RoHS
|

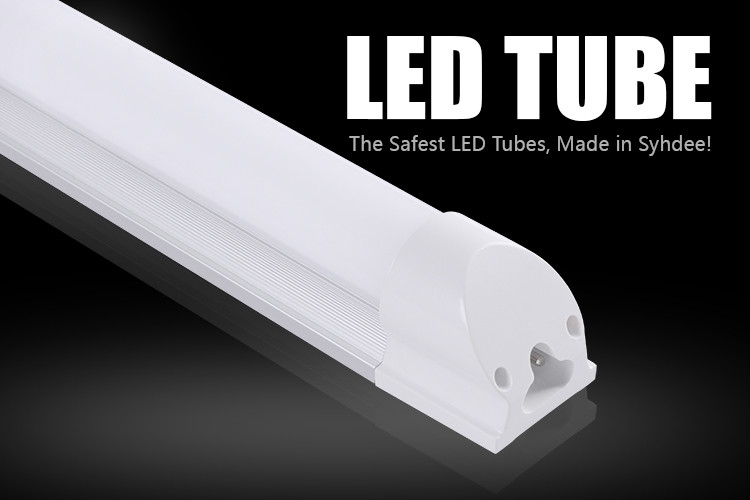

T8 LED Tube Light Features
T8 LED tube light integration 2ft 10W designed
with lamp and fittings integrated
Single LEDs of 24-26lumen per watt with higher
brightness and wider luminance
Non-isolated power supply of 86% power
conversion efficiency
Glass fiber PCB board for excellent insulation
Anodic techniques to protect alloyed aluminum
housing from corrosion
