Integrated LED T8 Tube Parameters
|
Model
NO.
|
T08-012-125C-IN-F01
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
1600
|
|
CCT(K)
|
6000-6500
|
|
CRI(Ra)
|
70
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity
|
125
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-240V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
D72-80V
|
|
Total Power(W)
|
19
|
|
Power Factor
|
>0.9
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
3750Vac/60s
|
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
Φ26×1200
|
|
Length(mm)
|
1200
|
|
Net Weight(g)
|
320
|
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
/
|
|
Environmental Directives
|
RoHS
|

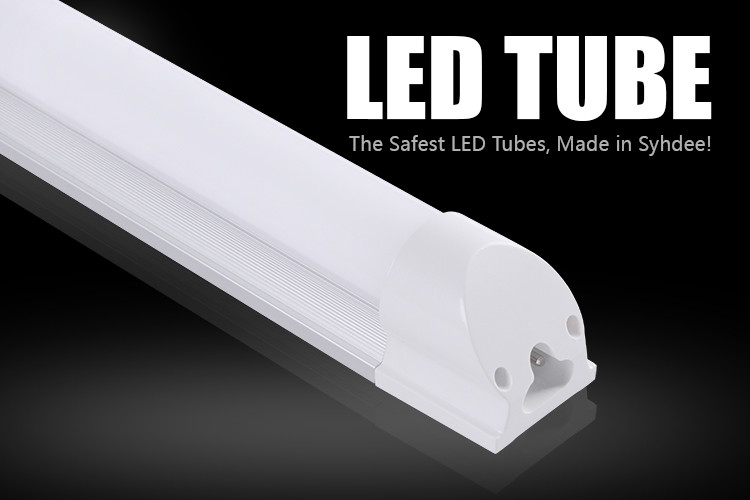

Integrated LED T8 Tube Features
New integrated LED t8 tube 19W 4ft tube light
designed with PC cover and aluminum shell integration
Single LEDs of 22-24lumen per watt with higher
brightness and wider luminous area
Non-isolated power supply of 88% power
conversion efficiency
Glass fiber PCB board for excellent insulation
Frosted PC cover of 0.85-0.88 light
transmittance
Anodic techniques to protect alloyed aluminum
housing from corrosion
