T8 LED Light Parameters
|
Model
NO.
|
X08-015F-RO
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
2200
|
|
CCT(K)
|
4000-4500
|
|
CRI(Ra)
|
80
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity
|
150
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-240V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC72-80V
|
|
Total Power(W)
|
22
|
|
Power Factor
|
0.9
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
3750Vac/60s
|
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
Φ26×1500
|
|
Length(mm)
|
1500
|
|
Net Weight(g)
|
465
|
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
CE
|
|
Environmental Directives
|
RoHS
|
T8 LED Light Features

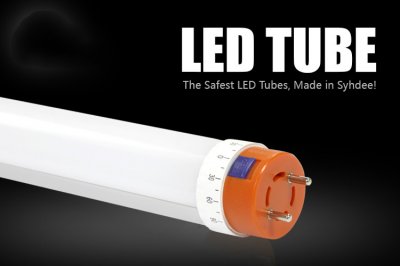

T8 LED light 150cm 22W lights tube with orange
round end caps design
Single LEDs of 25-27lumen with higher
brightness and wider luminous area
Non-Isolated power supply of 90% power
conversion efficiency compliant with CE standard
Milky PC cover of 85-88% light transmittance
Anodic oxidation to protect alloyed aluminum
housing from corrosion and scratch
