LED Tube Light Parameters
|
Model
NO.
|
X08-012F-RO
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
1800
|
|
CRI(Ra)
|
80
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity
|
125
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-240V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC72-80V
|
|
Total Power(W)
|
18
|
|
Power Factor
|
>0.9
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
3750Vac/60s
|
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
Φ26×1200
|
|
Length(mm)
|
1200
|
|
Net Weight(g)
|
320
|
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
CE
|
|
Environmental Directives
|
RoHS
|

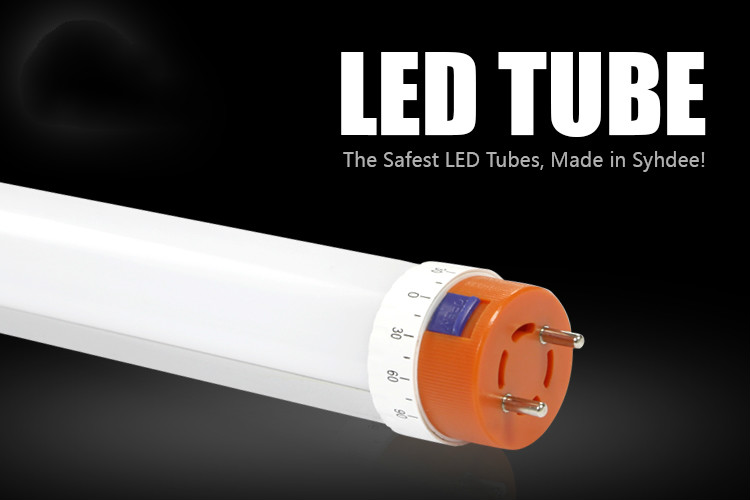

LED Tube Light Features
DEKRA-CE Certified LED Tube Light 4ft 18W T8
Tube featured by orange round end caps
Single LEDs of 25-27 lumens to ensure high
brightness
Non-isolated power supply with 90% power
conversion efficiency
Frosted lens PC cover of 0.85-0.88 light
transmittance
Anodic techniques to protect alloyed aluminum
housing surface from scratch
