LED Tube Parameters
Model NO.
|
X08-1524F-RO
|
Optical Parameters
|
Light
Source
|
SMD
LED2835
|
Luminous
Flux(lm)
|
2400
|
CCT(K)
|
2800-3200
|
CRI(Ra)
|
80
|
Beam
Angle
|
120°-160°
|
Light
Attenuation ratio (%)
|
Less
than 10% in 3 years
|
LED
Quantity
|
432
|
Electrical Parameters
|
Input
Voltage(V)
|
AC100-240V
|
Frequency(Hz)
|
50/60HZ
|
Output
Voltage(V)
|
DC72-80V
|
Total
Power(W)
|
24
|
Power
Factor
|
0.9
|
Lifespan
(Hrs)
|
>50,000
|
Dielectric
Voltage Withstand Test
|
3750Vac/60s
|
Structural
Parameters
|
Material
|
Aluminum
housing &PC cover
|
Size(mm)
|
Φ26×1500
|
Length(mm)
|
1500
|
Net
Weight(g)
|
465
|
Integrated
Parameters
|
Operating
Temperature
|
-10°-40°
|
Storage
Humidity
|
-40°-85°
|
Safety
Requirement
|
CE
|
Environmental
Directives
|
RoHS
|
LED Tube Features

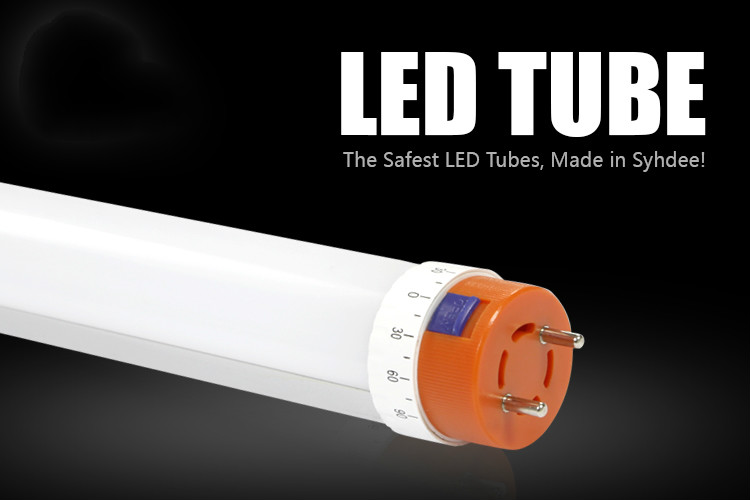

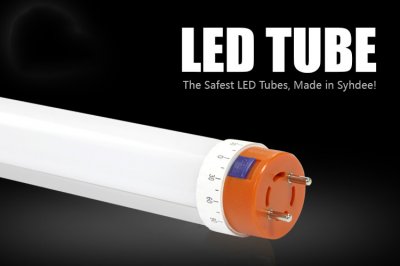

LED tube 1500mm 24W
tube lights designed with orange round end caps
Single LEDs of 24-26lumen with higher
luminance and wider luminous area
Non-Isolated power supply of 90% power
conversion efficiency compliant with EMC, LVD standard
Frosted lenses PC cover of 85-88% light
transmittance without light shadow
Glass fiber PCB board for excellent
insulation
Anodic oxidation techniques to protect
alloyed aluminum housing from corrosion and scratch
