LED Cooler Door Lights Technical Parameters
|
Model Number
|
FL08-X1215/SYH-FL08-X1218
|
|
Optical Parameters
|
LED Type
|
SMD 2835
|
|
Luminous Flux(LM)
|
1500-1800
1800-2160
|
|
CCT(K)
|
2800-6500
|
|
CRI(Ra)
|
>80
|
|
Beam Angle
|
220°
|
|
Efficacy(LM/W)
|
100-120lm/w
|
|
Electrical Parameters
|
Power(W)
|
15/18
|
|
Input Voltage(V)
|
AC120-277
|
|
Frequency(Hz)
|
50/60
|
|
PF
|
0.9-0.98
|
|
Dimming
|
Non-dimming
|
|
Mechanical Parameters
|
Body Material
|
AL+PC
|
|
Dimension
|
1216mm*27mm
|
|
Integral Parameters
|
T-ambient
|
-20°-45°
|
|
Certification
|
Awaiting(UL)
|
|
Ingress Protection
|
IP65
|
LED Cooler Door Lights Key Features
1. Working under low temperature and intense humidity circumstance, LED cooler
door light is applied in cooler, refrigerator and freezer.
2. Linear LED cooler light has an outstanding CRI>80Ra and energy efficiency
of 100-120lm/w.
3. Vertical or horizontal installation for
retrofit flexibility

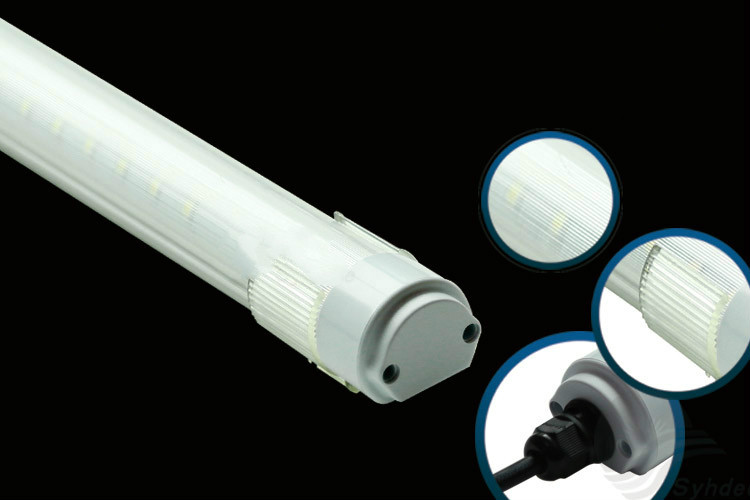

Details
1. Advanced LEDs
SMD LED2835 as light source, luminous flux
25-27lm
2. LED Driver
Adopting non-isolated LED driver, power
efficacy up to 88%
3. PC Cover
Stripy or clear optical grade PC cover to
ensure high luminous output
4. Built-in Aluminum
Aluminum
built-in for heat sink under very low temperature
