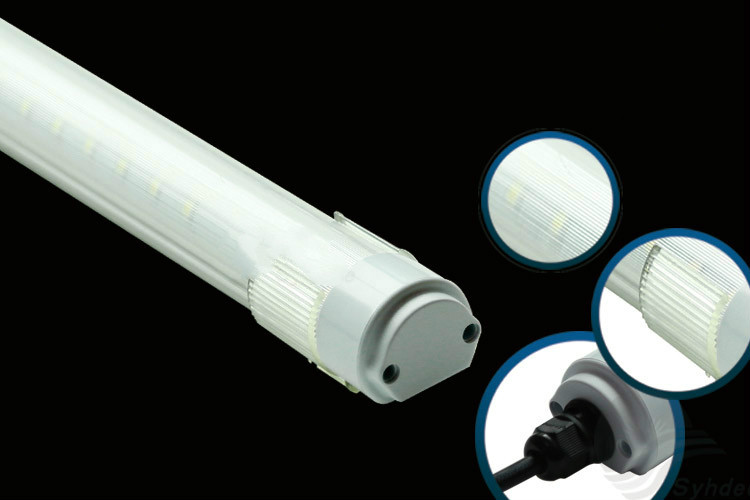

Cooler Freezer LED Tube Parameters
|
Model
NO.
|
FL08-X0608
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
800-960
|
|
CCT(K)
|
2800-6500
|
|
CRI(Ra)
|
>80
|
|
Beam Angle
|
220°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity(pcs)
|
80
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC120-277V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC72-80V
|
|
Total Power(W)
|
8
|
|
Power Factor
|
0.9~0.98
|
|
LM (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
/
|
|
Structural Parameters
|
Material
|
AL+PC
|
|
Size(mm)
|
Φ605×27
|
|
Length(mm)
|
605
|
|
Ingress Protection
|
IP65
|
|
Integrated Parameters
|
Operating Temperature
|
-20°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
Awaiting(UL)
|
|
Environmental Directives
|
RoHS
|
General Introduction
1.
This cooler freezer led tube light is one great replacement lights for
refrigerator, freezer display case, walk-in cooler and other cold storage
cases.
2. It has an outstanding luminous efficacy of
100-120lm/w and CRI>80Ra.
3. Vertical or horizontal installation for
retrofit flexibility.
Details
1. Advanced LEDs
SMD LED2835 as light source, luminous flux
25-27lm
2. LED Driver
Adopting non-isolated LED driver, power
efficacy up to 88%
3. PC Cover
Stripy or clear optical grade PC cover to
ensure high luminous output
4. Built-in Aluminum
Aluminum
built-in for heat sink under very low temperature
