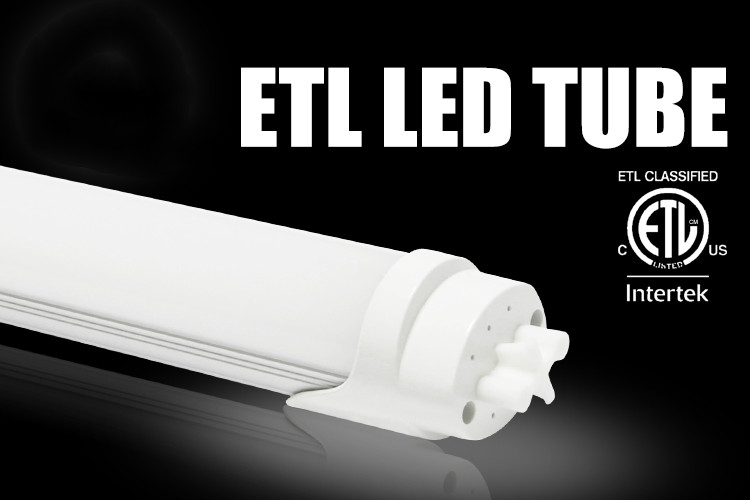

ETL LED Linear Lamps
Parameters
Model
NO.
|
X08-01222F PLE
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
Luminous Flux(lm)
|
2200
|
CCT(K)
|
4000-4500
|
CRI(Ra)
|
80
|
Beam Angle
|
120°-160°
|
Light Attenuation ratio (%)
|
Less than 10% within 3 years
|
LED Quantity
|
144
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-277V
|
Frequency(Hz)
|
50/60HZ
|
Output Voltage(V)
|
DC49-55V
|
Total Power(W)
|
22
|
Power Factor
|
>0.9
|
Lifespan (Hrs)
|
>50,000
|
Dielectric Voltage Withstand Test
|
1500Vac/60s
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
Size(mm)
|
D26*1200
|
Length(mm)
|
1200
|
Net Weight(g)
|
285
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
Storage Humidity
|
-40°-85°
|
Safety Requirement
|
ETL/cETL
|
Environmental Directives
|
RoHS
|
ETL Listed LED Linear Lamps Key Features
LED linear lamps 22w 4ft tube ETL cETL Listed
ellipse designed
25-27lm Single SMD LED2835 4000-4500K
ETLLED linear lamps with built-in LED driver
efficacy of 88%
Frosted/clear/stripe(available) plastic
diffuser V0 optical lense, 0.8mm thickness
0.81mm thickness aluminum shade material for
heat sink
