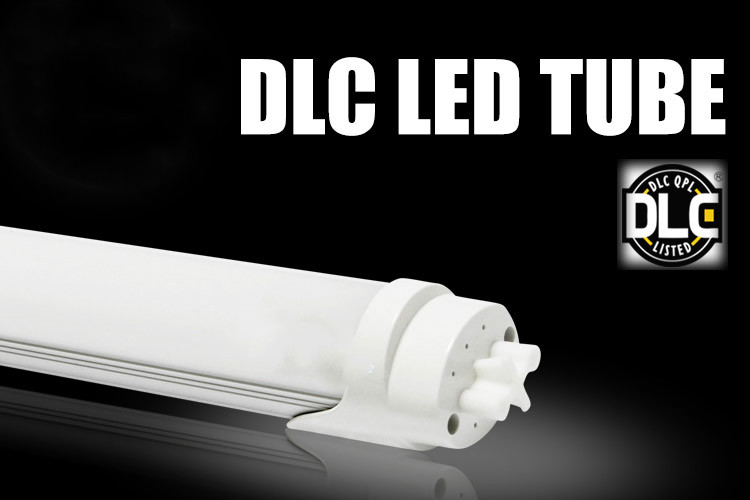

DLC Qualified LED Tube Parameters
|
Model
NO.
|
M08-012
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
1800
|
|
CCT(K)
|
5000
|
|
CRI(Ra)
|
80
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% in 3 years
|
|
LED Quantity
|
144
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC120-277V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC36-42V
|
|
Total Power(W)
|
18
|
|
Power Factor
|
>0.9
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
3750Vac/60s
|
|
Structure Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
Φ26×1200
|
|
Length(mm)
|
1200
|
|
Net Weight(g)
|
320
|
|
Integrated Parameters
|
Operating Temperature
|
-10°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
DLC Qualified
|
|
Environmental Directives
|
RoHS
|
LED Tube Features
DLC qualified LED tube 18W 4ft tube lighting
with beveled end caps design
Adopting Single SMD LED2835 of 25-27 lumens
with higher brightness
Isolated power supply of 86% power conversion
efficiency
Anodic oxidation techniques to protect alloyed
aluminum housing surface
