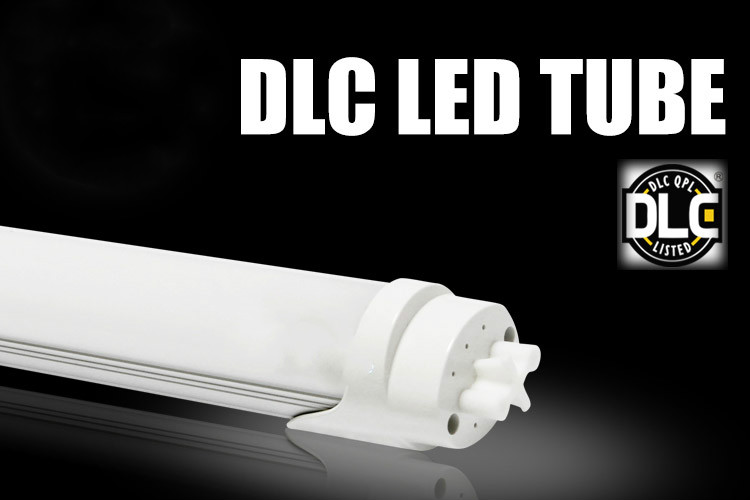

DLC Qualified LED Tube
Lights Parameters
|
Model
NO.
|
M08-01215F 030103
|
|
Optical Parameters
|
Light Source
|
SMD LED2835
|
|
Luminous Flux(lm)
|
1500
|
|
CCT(K)
|
3000/3500/4000/4500/5000
|
|
CRI(Ra)
|
80
|
|
Beam Angle
|
120°-160°
|
|
Light Attenuation ratio (%)
|
Less than 10% within 3 years
|
|
LED Quantity
|
126
|
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-277V
|
|
Frequency(Hz)
|
50/60HZ
|
|
Output Voltage(V)
|
DC49-55V
|
|
Total Power(W)
|
15
|
|
Power Factor
|
>0.9
|
|
Lifespan (Hrs)
|
>50,000
|
|
Dielectric Voltage Withstand Test
|
1500Vac/60s
|
|
Structural Parameters
|
Material
|
Aluminum housing &PC cover
|
|
Size(mm)
|
D28*1200
|
|
Length(mm)
|
1200
|
|
Net Weight(g)
|
360
|
|
Integrated Parameters
|
Operating Temperature
|
-20°-40°
|
|
Storage Humidity
|
-40°-85°
|
|
Safety Requirement
|
DLC
|
|
Environmental Directives
|
RoHS
|
DLC LED Tube Lights Key Features
4ft 15w t8 LED tube lights DLC qualified
ellipse design
25-27lm Single SMD LED2835 as light source
DLC LED tube lights with built-in LED driver
efficacy of 88%
Frosted plastic diffuser V0 optical
lense, 0.8mm thickness
0.81mm thickness aluminum metal housing for
heat sink
