Features:
1.) 1.Structured LED arrays mounted on metal core circuit for optimized light photometric distribution .
2.85*135°precision refractive optical lens designed for various applications
3.LM-79 tests and reports are performed in accordance with IESNA standards.
4.Mount angle adjustable
2).LED brand :Samgung /CREE / Philips
3).Driver :Meanwell
4).Dialux simulation service provided.

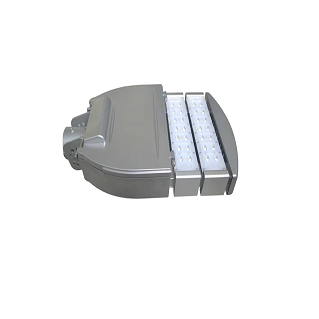

Model NO: | AGS-ST300-W60 | Housing Color | Silver |
Wattage (w) | 60±5W | IP Rating ; | IP65 |
Lumens (LM) | 6000LM | Certification | CE,ROHS ,DLC |
Power Fact (PF) | ＞0.9 | Warranty (Years) | 3 |
Beam Angle (°) | 85x135DEG | N.W.: (KG) | 5.6 |
OP. Frequency (Hz./kHz) | 50-60HZ | G.W.: (KG) | 6.6 |
Input Voltage Range (V) | 100-277VAC | Packing Dimension（MM） | 565*355*175 |
Luminous Efficiency (LM/W) | 100LM/W | Quantity / Carton( PCS) | 1PCS |
Color Rendering Index (CRI) | ＞70 | Working Environment | -35-45C
|
